6 PerspeX SB
A high-end sub-chassis turntable that delivers technical excellence, The 6 Perspex SB takes the same proven design as previous 6 Perspex designs, but utilises a far superior motor to give vinyl enthusiasts an even more appealing high-end vinyl spinner.

The 6 PerspeX SB's perimeter drive-belt mechanism was inspired by the introduction of the RPM 10 Carbon turntable, which uses a fully-decoupled motor. With the 6 Perspex SB, the motor sits within its own cut-out inside the main plinth, lined with damping material for reduced resonance. The motor itself is an AC design, which is regulated by its own built-in speed controller. This speed controller not only offers easy switching between 33 and 45rpm, but it also generates an entirely fresh new sine wave for the motor – filtering out the fluctuations and distortions associated with a typical mains supply, for reduced resonance.

The 6 Perspex SB stands out as a beautifully engineered machine thanks to the pristine acrylic plinth, which is accented by the striking sub-chassis, platter and TPE-damped aluminium coned feet, as well as the new motor.

The turntable’s sub-chassis is made of Corian®, a solid-surface material renowned for its isolation properties. This sub-chassis is then isolated from the main plinth by magnetic power, effectively creating a “floating” platform free from unwanted vibrations. The precision-balanced vinyl sandwich platter rides on the sub-chassis utilising an inverted main bearing, which combines a stainless-steel axle with a ceramic ball. The platter’s 4mm thick vinyl top-layer is the perfect interface for a playing record, and eliminates the need for any form of turntable mat, which can have a detrimental effect on the sound performance of high-end turntables. The platter is finished with a threaded spindle, to accommodate the supplied screw-able record clamp.

The 6 Perspex SB is finished with Pro-Ject’s coveted 9CC Evolution tonearm for a true high-end experience. The 9” tonearm boasts a one-piece conical carbon fibre tube, TPE-damped counterweights and an inverted bearing design that allows for perfect tracking and minimal resonance, even with demanding pick-up cartridges.

Henley Audio also offer a special cartridge bundle service so you can get a matching Pro-Ject or Ortofon Moving Coil cartridge for up-to 30% off (read our FAQ).

The 6 Perspex SB is the complete audiophile turntable, but at a very appealing price. A top grade phono cable is supplied in the way of the Connect-IT E (123cm) and a protective dust cover tops off this incredible package.

Upgrade Your Tonearm

The tonearm is one of the most important parts of a turntable and therefore not only influences, but also shapes the sound in a specific way.

The all-new EVO and EVO premium tonearm ranges are the result of Pro-Ject's work from the last years, and they are proud to also offer new finishes and many additional improvements.

To learn more about the EVO and EVO premium tonearm ranges, head here.

True Balanced Connections

The interconnect cable between a record player and a phono stage is prone to pick up noise on the way. That noise and interference can stem from a lot of unavoidable sources, such as household applicances, wi-fi and bluetooth devices, other power cables and audio amplifiers. Unshielded (i.e. RCA) interconnects can amplify the picked-up noise and make it audible through your speakers, interfering with the pure musical signal.

Balanced (typically XLR) cable connections double the wires carrying the musical signal – with one side inverted. In this case noise still gets picked up by both wires, but with one side reversed. When the signals are re-joined at the phono stage, the picked-up noise is cancelled out by the opposing signals. The benefit of this is a louder, cleaner musical signal that has doubled in size with almost no remaining noise.

This product is no longer available to order and will not be coming back into stock.

In Stock products are those that are currently held in stock at our Oxfordshire warehouse. This stock status is updated regularly but is subject to change at very short notice.

Products that are Awaiting Stock are items that we would normally carry on stock at our Oxfordshire warehouse, but are currently unavailable. Chances are there is already more on the way, but if you would like a more accurate availability status please feel free to Contact Us.

Urgent order items are products that we do not normally carry on stock, but they are typically held on stock by our European suppliers. Depending on availability, we will seek to order these products quickly, when we have an enquiry. They can therefore be subject to quicker availability times than "Special Order" products.

Special Order items are those that are most often built to order. For these items, we tend to experience longer lead times as we negotiate them into the production line with our suppliers.

6 PerspeX SB

RRP: £1799.00

A high-end sub-chassis turntable that delivers technical excellence, The 6 Perspex SB takes the same proven design as previous 6 Perspex designs, but utilises a far superior motor to give vinyl enthusiasts an even more appealing high-end vinyl spinner.

Options:

The 6 PerspeX SB

This turntable stands out as a beautifully engineered machine thanks to the pristine acrylic plinth, which is accented by the striking sub-chassis, platter and TPE-damped aluminium coned feet, as well as the new motor. A huge upgrade from its predecessor.

The Build

The turntable’s sub-chassis is made of Corian, a solid-surface material renowned for its isolation properties. This sub-chassis is then isolated from the main plinth by magnetic power, effectively creating a “floating” platform free from unwanted vibrations. The precision-balanced vinyl sandwich platter rides on the sub-chassis utilising an inverted main bearing, which combines a stainless-steel axle with a ceramic ball. The platter’s 4mm thick vinyl top layer is the perfect interface for a playing record, and eliminates the need for any form of turntable mat. The platter is finished with a threaded spindle to accommodate the supplied screw-able record clamp.

Drive System

The perimeter drive-belt mechanism was inspired by the introduction of the RPM 10 Carbon turntable, which uses a fully decoupled motor. With the 6 Perspex SB, the motor sits within its own cut-out inside the main plinth, lined with damping material for reduced resonance. The motor itself is an AC design, which is regulated by its own built-in speed controller. This speed controller not only offers easy switching between 33 and 45rpm, but it also generates an entirely fresh new sine wave for the motor – filtering out the fluctuations and distortions associated with a typical mains supply, for reduced resonance.

The Tonearm

The 6 Perspex SB is finished with Pro-Ject’s coveted 9CC Evolution tonearm for a truly high-end experience. The 9” tonearm boasts a one-piece conical carbon fibre tube, TPE-damped counterweights and an inverted bearing design that allows for perfect tracking and minimal resonance, even with demanding pick-up cartridges.

Upgrade Your Tonearm

The tonearm is one of the most important parts of a turntable and therefore not only influences, but also shapes the sound in a specific way.

The all-new EVO and EVO premium tonearm ranges are the result of Pro-Ject's work from the last years, and they are proud to also offer new finishes and many additional improvements.

To learn more about the EVO and EVO premium tonearm ranges, head here.

The Finished Product

The 6 Perspex SB stands out as a beautifully engineered machine thanks to the pristine acrylic plinth, which is accented by the striking sub-chassis, platter and TPE-damped aluminium coned feet, as well as the new motor.

Ian Ringstead , HiFi Pig , July 2017

Hi-Fi pig review the Pro-ject Audio 6PerspeX SB

"Overall the Project 6 Perspex SB offers a lovely looking package that is easy to use and allows for improvements to boost its already good performance much further."

See full review

What Hi-Fi , August 2016

What Hi-Fi Review the 6PerspeX SB

"This is a sophisticated turntable, both in sound and build. We love the design and clever magnetic suspension system, and the hands-on approach will be a huge part of its appeal"

See full review

Hi-Fi Choice , August 2023

Pro-Ject 6 PerspeX SB Grouptest

"It has a big, confident and effortless presentation with scale and detail."

See full review


format_quoteHenley Says...

The Pro-Ject 6 Perspex SB is my perfect example of a lifestyle product combined with a turntable suitable for a true audiophile.

Adopting a sub-chassis design, the 6 Perspex offers smooth playback free from any interference from the motor as the platter is separated from the other components situated on the main chassis. With other high-end elements incorporated throughout such as an isolated motor block, and conical-shaped carbon tonearm, the performance of the 6 Perspex is unrivaled compared to other turntables at this price point.

Furthermore, with a thick Acrylic plinth as its base, the 6 Perspex offers stunning visuals that impress whether in use or on standby. The 6 Perspex has quickly become one of my favourite turntables thanks to its ability to provide an unmatched presentation in terms of both aesthetics and audio playback.

format_quote

Scott Lawson Technical Services Manager

  • Pro-Ject Audio Systems are masters of the analogue format. Their extensive range of turntables covers every use-case and budget, and most are sold as complete solutions with a pick-up cartridge readily installed. However, when you get to higher end designs, there is often not a pre-installed cartridge - as the choice of pick-up becomes ever-more personal.

    To help in this situation, Henley Audio, as distributors for both Pro-Ject Audio Systems and Ortofon, can offer cartridge bundle and installation services that sees your high-end turntable sent ready to set-up and spin with your own choice of cartridge pre-installed.

    Details of the cartridges we offer as part of this service can be found at the top of this page within 'promotions', but it covers premium Moving Coil options from Pro-Ject Audio Systems and the Ortofon Cadenza Series. For latest info or to discuss your requirements, Contact Us or speak with your local Pro-Ject Reference Partner dealer. If you choose to purchase a bundle cartridge and have your dealer fit it, or fit it yourself, the cartridge will be supplied securely and safely with the turntable, but not with normal retail packaging.

    All cartridges installed at Henley Audio will be treated with the utmost care and attention and fitted by a skilled and experienced member of our team. The turntable it's being installed on will also be set-up for a brief test, to confirm compatibility. All Henley Audio installed systems will have a certificate of authenticity enclosed, for added confidence when you get the turntable home. There is a £25.00 +VAT charge to have a Henley Audio engineer install your cartridge, and there may be a minor delay to despatching your turntable as a result.

    Cartridges installed onto high-end turntables as part of a "bundle" deal are classified as BULK stock, which means they do not have full retail packaging and accessories. This is one of the ways we're able to offer such great discounts for you.

  • Yes, it is possible for this turntable to be upgraded with a true balanced connection to a supporting Pro-Ject phono stage.*

    For turntables with an RCA output, you can purchase one of our RCA > MiniXLR or RCA > XLR cables, depending on the phono stage you are connecting to.

    For turntables with a MiniXLR output, you can run a MiniXLR > MiniXLR or MiniXLR > XLR cable, depending on the phono stage you are connecting to.

    For turntables with a 5pin TAC output, you can purchase a 5P > MiniXLR or 5P > XLR cable.

    For more information on the True Balanced Connection concept click here.

    *True Balanced Connections always require a Moving Coil cartridge to be installed.

  • Sourcing the right counterweight for your tonearm is important, as it allows you to get the optimal match for your cartridge. So exactly which counterweight you need depends on your tonearm model and the cartridge you need to balance.



    9CC Evolution:

    Counterweight Model Block Weight Cartridge Weights Supported
    028 68g 5.0 - 7.5g
    029 96g 10.0 - 14.0g
    043 87g 9.0 - 11.0g
    046 83g 7.0 - 10.0g


  • PDF | 581 Kb | Hi-Fi Choice Review

  • PDF | 762 Kb | Press Release

  • PDF | 1 Mb | Product Info Sheet

  • PDF | 293 Kb | User Guide

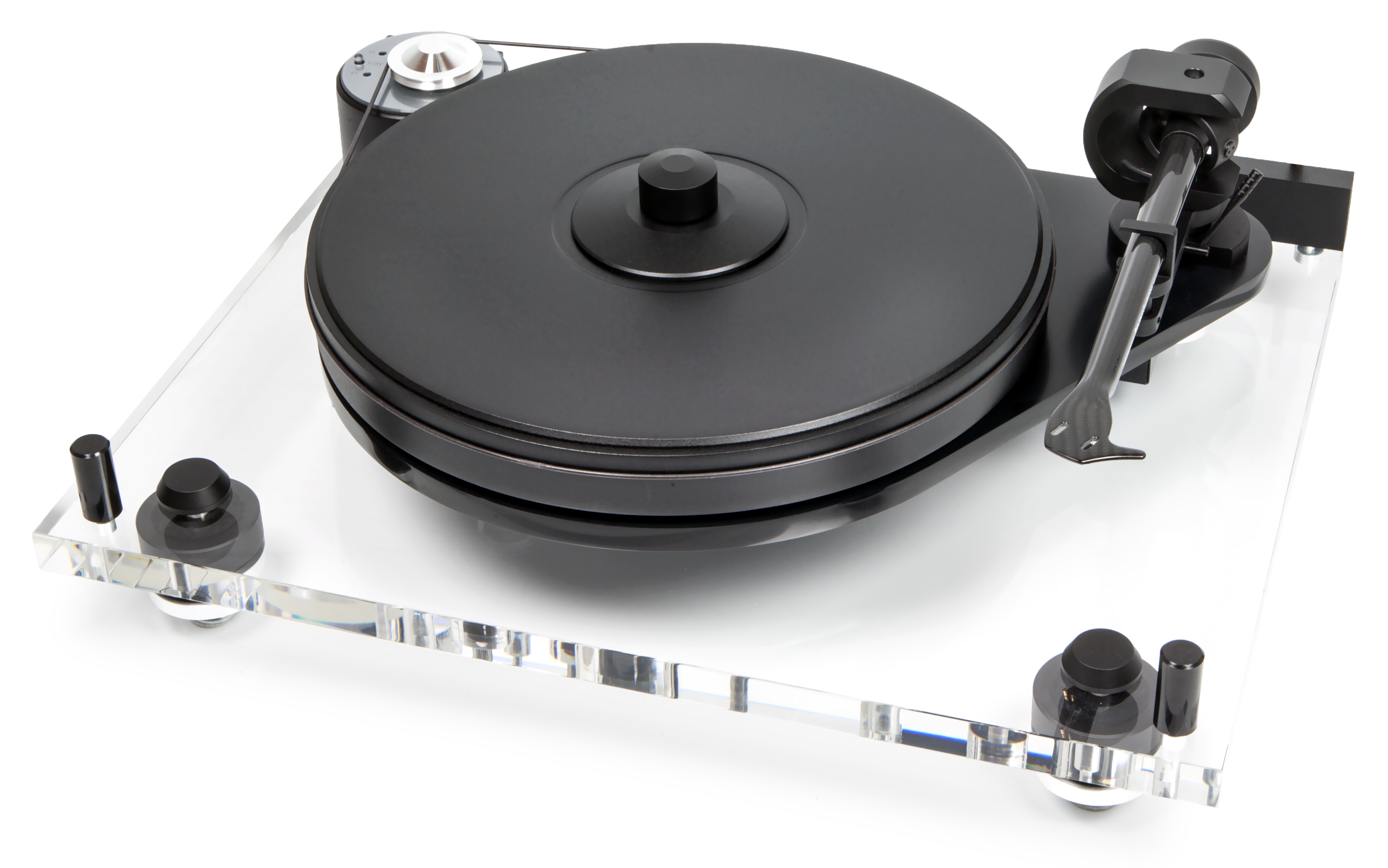

  • PNG | 10 Mb | Stock Photo (Front)
